200KHz Mach3 Controller Card Breakout Board for CNC Engraving Machine 4 axis Ethernet port
F1510 CNC Wireless Remote Control pad handl
Wireless Remote Control Module Performance and Characteristic
433MHz free ISM frequency channel, free license on trial
Remote controlling 10mW, distance > 30m, at least not below 0.5m
Hardware test error code, software optimizing algorithm, bi-direction communication, insure the communication stable and reliable
Send module matches address with receive module, the address can be set manually, at most 128 supportable addresses
Wireless remote controlling send module is supplied power by dry battery, at least working more than 6 months service time
Receiver module is set into 8421 port mode or P2P mode，at most 16 output ports
CNC Manual Pulse Generator
- 100% brand new and high quality
- This pulse encoder is suitable for manual pulse input type such as CNC or Milling machine
- High reliability, 6mm terminal connection type
- Ultra-thin and lightweight design, metal gear, smooth rotation, no sticking point position
- Hand wheel 100 stop positions, can return to normal, no high level output
Specifications:
Material: aviation aluminum
Color: black, white (Optional)
Product type: 6 terminal
Voltage: 5V
Diameter: 60mm/2.36in
Consumption current: ≤100mA
Response frequency :0-20 KHZ
Empty ratio: 0.5 T ± 0.1 T
Mechanical revolution: 500rpm
Normal revolutions: ≤200RPM
Protection: oil proof, water-resistance, dustproof IP54
Working temperature: -10~70℃
Working humidity: 30-85%
Size: as the picture
Weight: 200g

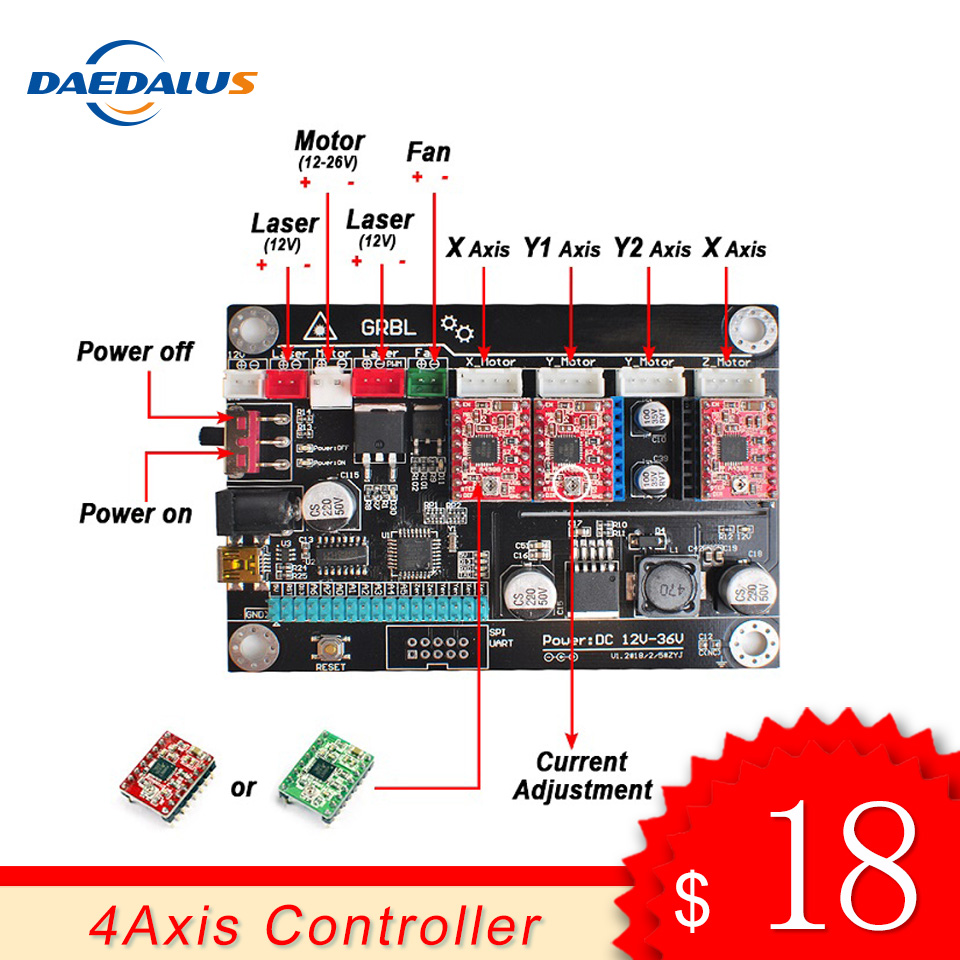

4 Axis CNC Controller Double Y Axis USB Driver Board Controller Laser Board GRBL Control For 3018 1610 2418 Engraving Machine
Features:
Double Y-Axis, all-round use;
Integrated 3 A4988 drivers, directly connect to four wire stepper motor;
Support Laser or Spindle;
Support 12V, 5V with TTL and without TTL laser;
Adjustable driver subdivision;
Support the xyz limit switch, probe interface;
Nano 3Axis Control Board is a Arduino Nano based 3 Axises Motion control system, can be used for Laser Engraving machine, Drawer Machine, CNC Engraving Machine etc.
GRBL 1.1 USB Port CNC Engraving Machine Control Board, 3 Axis Control,Laser Engraving Machine Board with Offline Controller
Connection: USB (USB-CH340)
Software: GRBL controller, UniversalGcodeSender
Master chip: atmel 328P (arduino nano)
Stepper motor driver: A4988
Spindle drive chip: MOSFET, the highest 60V (recommendation within 48V, current :within 10A )
Support stepper motor: 12V, maximum current of 2A or less is recommended within 1.5A and additional heat. (Any stepper motor 42, 57)
Laser engraving: Support
we have 1.1 version software for this control board , if you want it , pls contact us , leave your email . we will send it to you
DDCSV3.1 3/4 Axis 500KHz G-Code All Metal Cases Offline Controller+Handwheel DDCS V3.1 Replace Mach3 USB CNC Controller
Upgraded 5” DDCS V3.1 3/4 Axis 500Khz G-Code All metal cases Offline Controller + Handwheel Kits Replace Mach3 USB CNC Controller for CNC Router
1. Shipping list
| 1PC | DDCS V3.1 CNC Offline Controller （3/4 Axis Optional） |
| 1PC | 4GB USB Flash Disk |
| 1 Pack | USB Extension Cable + Accessories |
| 1PC | Handwheel （With Emergency Button） |
We can provide PDF version of the manual, if you need, please contact us and leave your email.
2. Main Functions
| Input interface | 16-circuit optocoupler coupling isolation |
|
Output interface |
Ordinary digital 3-circuit optocoupler coupling isolation |
| 0-10V spindle control port with analog quantity(can be modified as PWM output); | |
| Axis No. | Support the 3/4 axis stepper motor control, |
| Single axis Pulse | Max 500Khz |
| Main control chip | ARM9 |
| Core algorithm chip | FPGA |
| Screen | 5 inches TFT 480*272 |
| Operational keys | 17 |
| Power supply | 24VDC power input, minimum Current is 0.5A |
| G Code | USB flash disk support for G code file input,no size limited of the G-code file |
| MPG port | Support the general MPG in the market |
|
Other |
Jog function for each axis (continuous, step, defined distance) |
| Support the operation of quickly specify the running position | |
| Support for “Power Cut” recovery. Data is automatically saved | |
| Support the origin and Limit share the same Input ports | |
| The controller only support NPN type limited switch | |
| 1GB internal memory |
3.Handwheel
Description
– The CNC 4 Axis handheld controller MPG Pendant with x1, x10, x100 selectable, You are bidding one complete unit of the MPG pendant with Emergency stop for 4 axis CNC machine,
it equipped with our popular machined MPG unit with 4 axis and scale selector, LED indicator also send feedback from the CNC machine to user about the status of the unit.
– All Wiring isolated from MPG unit and provide a easy to install wiring diagram, it suit both commercial machine as a replacement jog control unit or other computer based controller.
Which add great control flexibility to the system.
Features :
– x1, x10, x100 switch
– X,Y,Z,4th axis selector switch
– LED indicator
– With Emergency stop
– High quality professional chassis
– 6ft extendable high quality shielded cable cord
– Magnetic base holder can place anywhere on the machine steel surface
– Required 5V+, 150mA, power for MPG
– Phase output is A ,/A and B,/B;
– TTL output, drive capability +-20mA;
Wiring:
– User can wire this unit to the CNC system with easy.
Line color definition
| colour | signal |
| red | Vcc |
| black | GND |
| green | A |
| white | B |
| purple | A\ |
| purple\black | B\ |
| yellow | X |
| yellow\black | Y |
| brown | Z |
| brown\black | 4 |
| pink | 5 |
| pink\black | 6 |
| gray | X1 |
| gray\black | X10 |
| orange | X100 |
| orange\black | COM |
| green\black | L+ |
| white\black | L- |
| blue | stop-c |
| blue\black | stop-cn |
4. Technical advantage
| 1 | The control period of each position is only 4 second |
| 2 | high control precision, the pulse width can be adjusted |
| 3 | It supports the common stepper motor and servo motor |
| 4 | ARM+FPGA design framework |
| 5 | The ARM can finish the part of human-computer interface and code analysis |
| 6 | the FPGA can finish the part of underlying algorithm and control pulse generate |
| 7 | The common off-line operation can be finished only by 17 keys |
| 8 | it supports the FANUC with high universality to be compatible with G code set |
| 9 | Port of the controller is extensible(8 Input/12 relay output) |
| 10 | It Does not need a dedicated computer for engraving machine |
Cloudray LIHUIYU M2 Nano Laser Controller Mother Main Board + Control Panel + Dongle B System Engraver Cutter DIY 3020 3040 K40
Ruida RDC6445 RDC6445G Controller
Ruida RDC6445S and RDC6445G are combined into a unified model: RDC6445G which supports Double-Head Linkage Function
CNC5 axis CNC system for new independent motion controller,Supports standard G code, up to 125K stepper motor control pulse output
1, the highest 5 axis stepper motor drive output.
2, support standard G code, support G code list reference product manual.
3, with 8 programmable input interface, it can be configured as stop and stop functions.
4, with 5 programmable output interface, the output can be controlled by M command.
5, with 1 road spindle 0-10V speed control output.
6, support standard hand pulse, serial digital display hand pulse, digital display hand control.
7, no computer, offline operation control.
8, USB interface, support U disk read G code files and execute.
9, the electrical isolation of the control part and the interface part
10. Ergonomic design.
11. The highest 125K stepper motor controls pulse output, which is suitable for most machine tool systems.
Three, application field
Used in the following areas:
It is used to process a variety of colorful moulds, such as embossing board, shoe sole mold, button mold, zipper mold, pattern printing and stamping die, instrument mold, glass mold and so on.
It is used in advertising, such as: brand, sign, building model, badge, badge, inscription, board, exhibition board, sign, door card, indicator, craft decoration, furniture decoration and so on.
It can be used for portrait, scenery, calligraphy lettering, seal and other artistic graphic engraving, Yin Wen, Yang Wen profile, relief sculpture, etc.
With CNC controller, it is suitable for all kinds of small and medium-sized automation equipment and instruments.
NCH02 panel + master control
MACH3 interface board USB interface, engraving machine cnc 5-axis motion control card 200KHZ
200KHZ, high performance, full-featured MACH3 USB 5-axis linkage interface board, with the following features:
1. Up to 200KHZ pulse output per axis. (3 axis simultaneous linkage can output 200KHZ at the same time, 4 axes at the same time 140KHZ, 5 axes and 100KHZ pulse output!).
2. Provide 14 output ports (5V level), which can be flexibly configured into pulse and direction output of 5 axes, or can be configured as different output or enable functions.
3. Support various versions of MACH3 software and support the latest version.
4, support windows XP, WIN7, WIN8, WIN10, support 64-bit system, support laptops, support tablet.
5, the peripheral wide voltage input, 13-24V, and anti-reverse function.
6. All input signals are separated by optical diaphragm, which can be connected to emergency stop, tool setting, limit position, zero return, etc. to ensure computer security.
7. One-way optocoupler-isolated 0-10V analog voltage output can control the inverter input from 0-10V analog voltage to control the spindle speed.
8, provide PWM output (5V level), can be connected to the spindle governor controlled by PWM.
9, the output port (5V level), can be connected to the optocoupler relay module, solid state relay, control water cooling, spray and so on.
10. Stepper motor driver or servo motor driver (pulse + direction) with common anode or common cathode, input level of 5V, with optocoupler input.
11. At the same time, the 5-axis interface cable socket (XH2.54) is provided (the driver can be connected to the cable socket, or the lower terminal can be connected), which is convenient for connection.
12. Provide electronic handwheel interface and expand to 10 inputs.
13, the board prints all port names, at a glance.
14, finely crafted to ensure stable operation.
Product port name and function:
(The figure is the port name in the default setting. In fact, the input and output can be flexibly set!)
